JACK PANELS
Q-G ? PATCHBAY SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
Q-G ? PATCHBAY SERIES

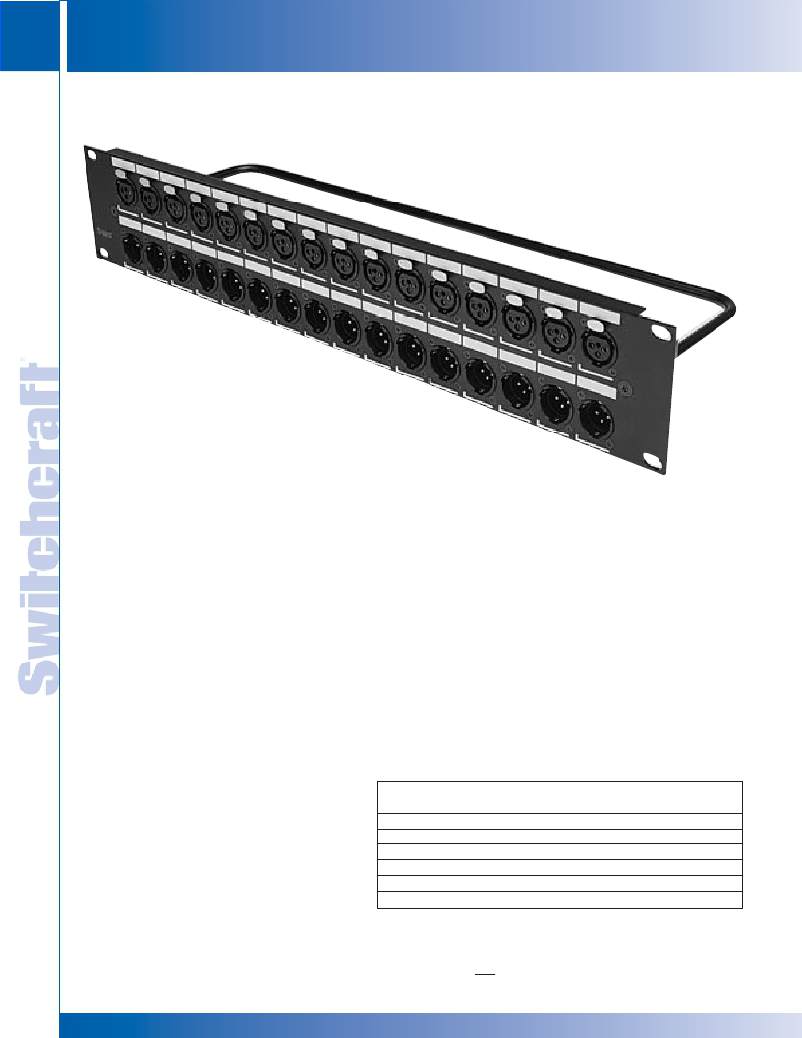

QGPK332MFB
The QG Patchbay features a 19" rack unit loaded with E Series QG
connectors. These XLR’s have the same panel cut-out, male or female,
silver-plated pins or contacts, and a black finish. All connectors have
solder cup terminals for easy soldering and the inserts are removable
from the back, allowing for easy changes. The one rack unit height
version comes with 16 male, or 16 female, or 8 male and 8 female
connectors. The two rack unit version comes with 16 male and
16 female connectors. We also offer the unit without connectors, but with
the panel cut-outs already punched out. All versions have
a rugged cable tie bar, which takes the weight of the cabling away
from the solder connections.
FEATURES AND BENEFITS
? Available in 1RU or 2RU versions
? Available with or without the connectors
? E Series connectors are silver-plated,
3 pins/contacts with black finish
? Cable tie bar takes the weight of the cables off
the solder terminations
? Rugged aluminum channel
increases durability
? Silk-screen designation area makes
it easy to re-label channels
Latch Release: Steel, nickel-plated
Insert Locking Cam: Die-cast zinc
FRAME
Aluminum, black anodized
CABLE TIE BAR
Steel, black epoxy
SPECIFICATIONS
MATERIALS
CONNECTORS
Housing: Die-cast, black velvet finish
Inserts: Glass-filled thermoplastic
Pin/Contacts: Copper alloy, silver-plated
Ordering Information
Part Number Height
QGPK116FB 1.75"
QGPK116MB 1.75"
QGPK18M8FB 1.75"
QGPK332MFB 3.5"
Description
16 female
16 male
8 male, 8 female
16 female( top), 16 male (bottom)
QGPK1B
QGPK3B
1.75"
3.5"
Blank panel
Blank panel
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
